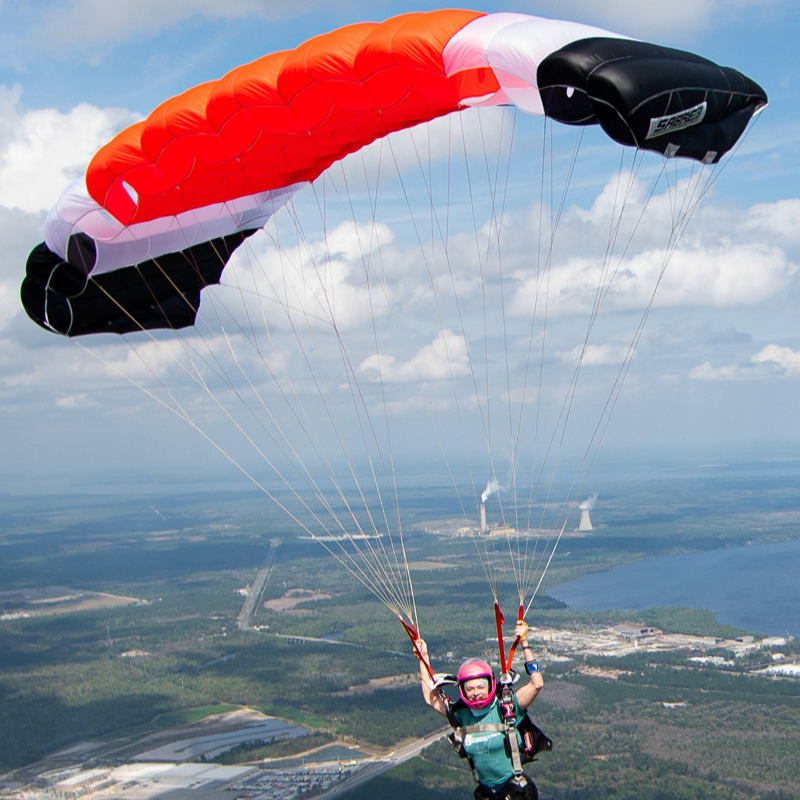

A truly dynamic wing, the Sabre3’s range is as wide as the spectrum of jumpers it’s sure to excite. Whether your goal is to have fun and land safely, experience thrilling flight, or cultivate the skills necessary to one day move onto higher performance wings, the Sabre3 is the perfect tool for the job.
The Sabre3 is capable of beast-mode when flown aggressively in the hands of an expert. It also allows for seriously fun flight, that’s downright gentle when sized conservatively. The immediate, crisp, predictable response from any input makes this wing feel comfortable and intuitive.
And those tail ribs aren’t just for turning heads, they bring more power across a wide range of flight modes and increase the efficiency of the wing.
TECHNICAL INFORMATION
- Sizes 89, 97, 107, 120, 135, 150, 170, 190, 210, 230
- 9-cell, w/advanced shaping
- All Zero Porosity fabric
- Tail Ribs
- 700 HMA Standard 89-210
- 1000 HMA Standard on 230
CHARACTERISTICS
- Long recovery arc
- Progressive & manageable front risers
- Steep glide
- Spectacular rear riser performance
- Powerful bottom-end flare
- Redesigned and refined openings
GREAT FOR
- Advanced to Expert skydivers at moderate to heavier wing loads
- Novice to Intermediate skydivers at moderate wing loads
- Learning or perfecting high performance canopy piloting (under appropriate supervision)
SABRE3 WING LOAD CHART
| Canopy Model | Area (Sq.Ft.) | Min Exit Wt. | Student* | Novice* | Intermediate* | Advanced* | Expert* | Max* | Span (FT.) | Chord (FT.) | Aspect Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Sabre3 – 089 | 089 | VLC | N/S | N/S | N/S | N/S | 160 (73) | 178 (81) | 15.18 | 6.11/5.10 | 2.59:1 |
| Sabre3 – 097 | 097 | VLC | N/S | N/S | N/S | 136 (62) | 175 (79) | 194 (88) | 15.85 | 6.37/5.33 | 2.59:1 |
| Sabre3 – 107 | 107 | VLC | N/S | N/S | N/S | 150 (68) | 193 (87) | 214 (97) | 16.65 | 6.70/5.60 | 2.59:1 |
| Sabre3 – 120 | 120 | VLC | N/S | N/S | 120 (54) | 168 (76) | 216 (98) | 240 (109) | 17.63 | 7.09/5.93 | 2.59:1 |
| Sabre3 – 135 | 135 | VLC | N/S | 108 (49) | 149 (67) | 203 (92) | 236 (107) | 250 (113) | 18.70 | 7.52/6.29 | 2.59:1 |
| Sabre3 – 150 | 150 | VLC | N/S | 127 (59) | 173 (78) | 225 (102) | 240 (109) | 260 (118) | 19.71 | 7.93/6.63 | 2.59:1 |
| Sabre3 – 170 | 170 | VLC | 127** (59)** | 152 (69) | 196 (89) | 238 (108) | 255 (116) | 281 (127) | 20.98 | 8.44/7.05 | 2.59:1 |
| Sabre3 – 190 | 190 | VLC | 152** (69)** | 180 (82) | 209 (95) | 247 (112) | 266 (121) | 285 (129) | 22.18 | 8.92/7.46 | 2.59:1 |
| Sabre3 – 210 | 210 | VLC | 168** (76)** | 210 (95) | 221 (100) | 252 (114) | 273 (124) | 294 (133) | 23.32 | 9.38/7.84 | 2.59:1 |
| Sabre3 – 230 | 230 | VLC | 184** (83)** | 230 (104) | 242 (110) | 253 (115) | 276 (125) | 299 (136) | 24.41 | 9.82/8.20 | 2.59:1 |
